61303211121
Manufacturer:
Wurth Electronics
Mfr.Part #:
61303211121
Datasheet:
Description:

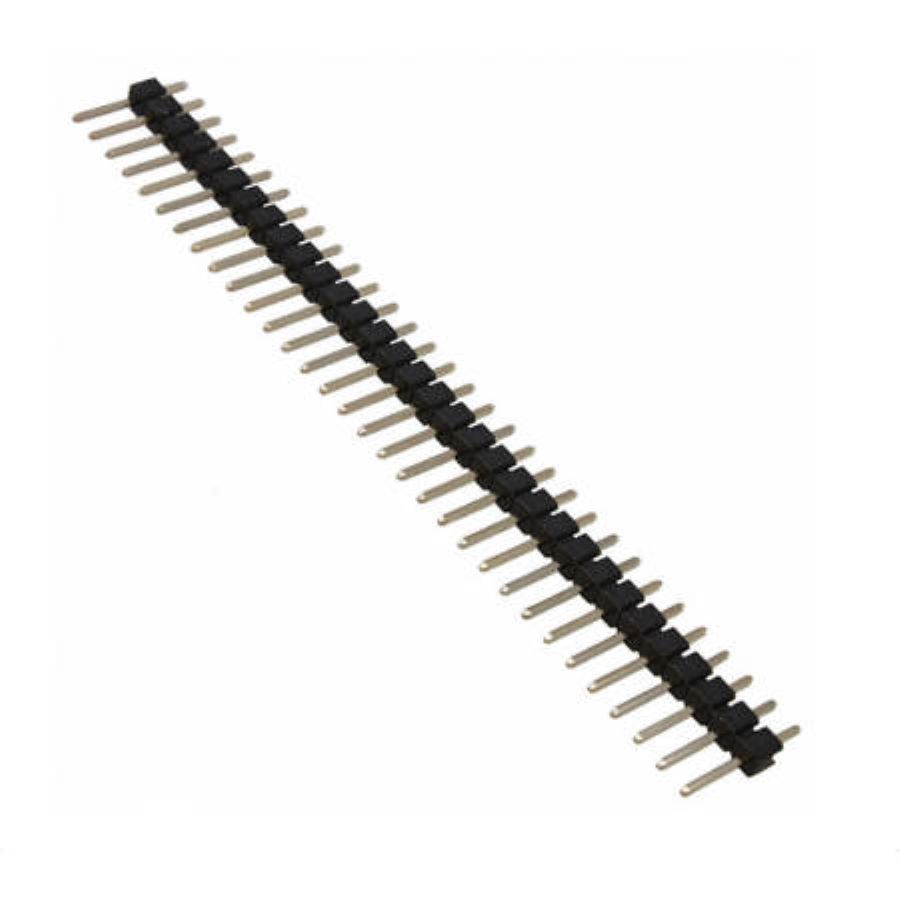

Headers and Wire Housings Through Hole Male Pin Number of Positions:32 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 81.28 mm |
| Width | 81.28 mm |
| Termination | Through Hole |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 32 |
| Height | 2.54 mm |
| Packaging | Bulk |
| Voltage Rating | 250 V |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 1 GΩ |
| REACH SVHC | Unknown |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Copper |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Operating Supply Voltage | 250 V |
| Color | Black |
| Gender | Male |
| Number of Contacts | 32 |
| Connector Type | Male Pin |
| Insulation | Insulated |
| Number of Positions | 32 |
| Number of Rows | 1 |
| Housing Material | PBT |
| Contact Resistance | 20 mΩ |
| Contact Mating Length | 5.9944 mm |
| Contact Gender | Male |
| Mating Post Length | 6 mm |
| Termination Post Length | 3 mm |
Stock: 171
Distributors
pcbx
pcbxUnit Price$1.25137
Ext.Price$1.25137
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.25137 | $1.25137 |
| 10 | $1.22323 | $12.23230 |
| 25 | $1.17549 | $29.38725 |
| 50 | $1.12963 | $56.48150 |
| 100 | $1.03558 | $103.55800 |
